ConvertersWSDL to Bruno

Convert WSDL to Bruno Collection

Bruno supports importing WSDL (Web Services Description Language) files to automatically generate SOAP API collections. This feature is particularly useful when working with legacy SOAP-based web services, as it eliminates the need for manual configuration of SOAP requests.

WSDL import is available in Bruno v2.14.0 and later versions.

What Gets Generated

When you import a WSDL file, Bruno automatically:

  • Parses the WSDL structure and extracts all available service operations
  • Creates a structured collection with operations organized as individual .bru requests
  • Generates SOAP envelope templates for each operation based on the XML schema definitions
  • Pre-configures required headers including Content-Type: text/xml and SOAPAction
  • Includes XML schema documentation as comments within the request body

Import WSDL via UI

Step 1: Access Import Collection

  1. Click on the three-dot menu next to any collection in the sidebar
  2. Select Import Collection from the dropdown menu

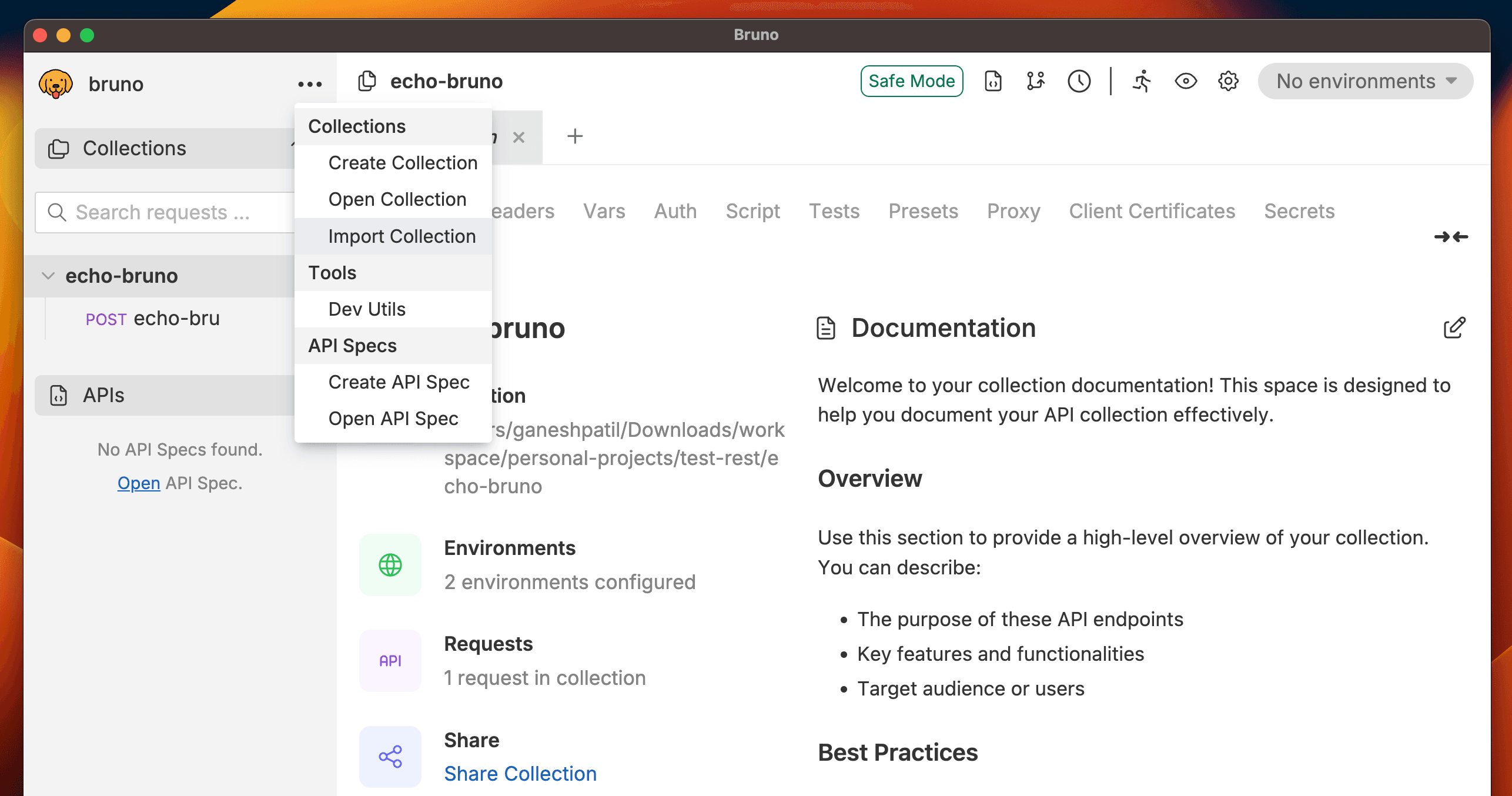

Import Collection Menu

Step 2: Choose WSDL Option

  1. In the Import Collection dialog, select the WSDL option

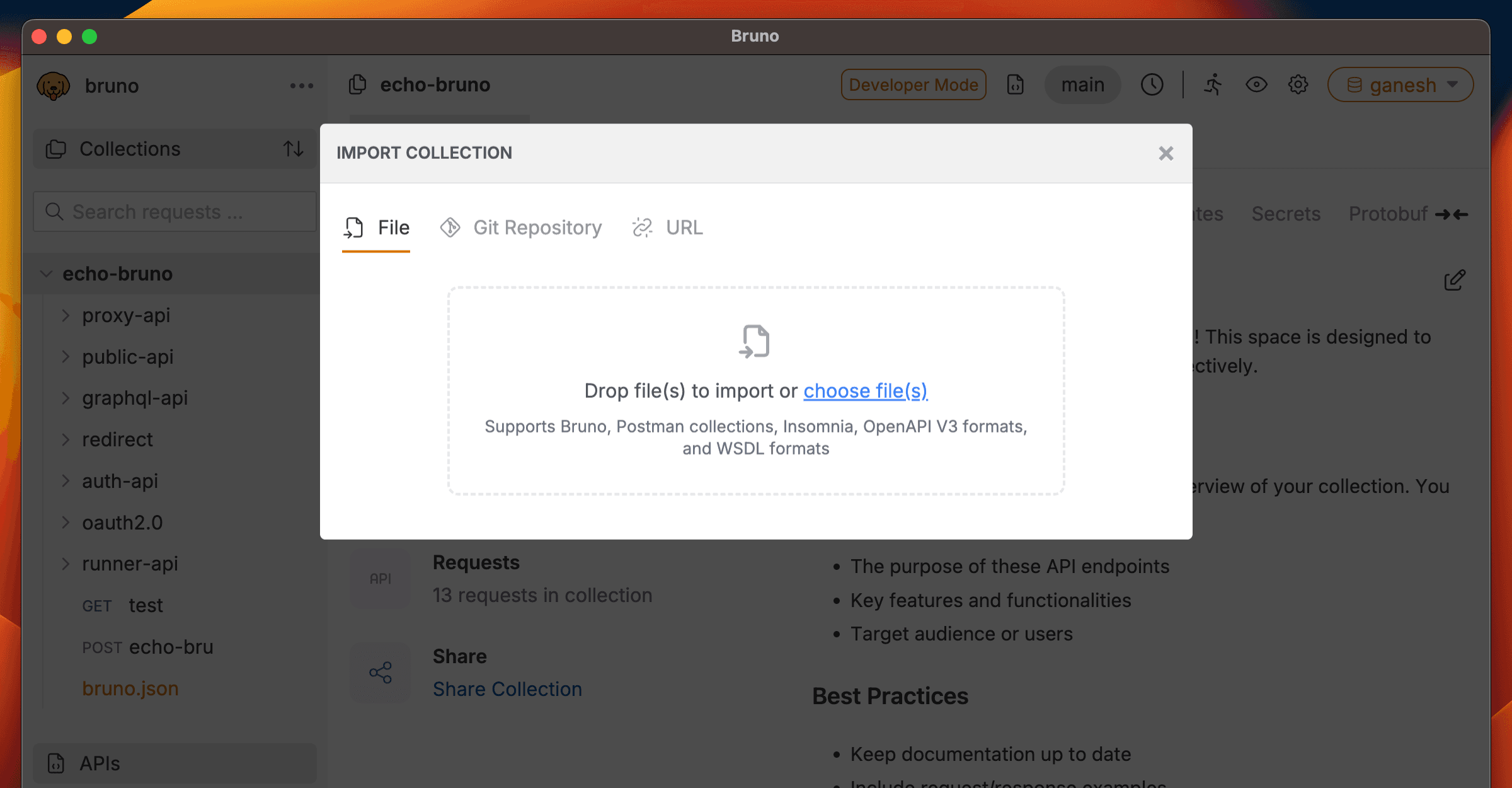

Import Dialog with WSDL Option

  1. You can either:
    • Click the upload area to browse for a local .wsdl file
    • Drag and drop a WSDL file directly into the dialog

Step 3: Import and Review

  1. After selecting your WSDL file, Bruno will parse it and generate the collection
  2. A new folder will be created containing all the SOAP operations
  3. Each operation will be a separate request with a pre-configured SOAP envelope

Bruno automatically validates the WSDL structure during import. If there are any issues, you’ll receive clear error messages.

Import WSDL via CLI

You can also import WSDL files using the Bruno CLI, which is useful for automation and CI/CD workflows.

Basic Command

bru import wsdl path/to/service.wsdl --output ./my-collection

Example

# Import a WSDL file
bru import wsdl ./services/calculator.wsdl --output ./calculator-collection

# Import with nested directory structure
bru import wsdl ./wsdl-files/user-service.wsdl --output ./collections/soap/users

For detailed CLI import options and examples, see the CLI Import Guide.

Programmatic Conversion

For advanced use cases, you can use the @usebruno/converters package to programmatically convert WSDL to Bruno collections.

Installation

npm install @usebruno/converters

Basic Usage

const { wsdlToBruno } = require('@usebruno/converters');
const { readFile, writeFile } = require('fs/promises');

async function convertWsdlToBruno(wsdlFile, outputFile) {
  try {
    // Read the WSDL file
    const wsdlContent = await readFile(wsdlFile, 'utf8');

    // Convert to Bruno collection
    const brunoCollection = await wsdlToBruno(wsdlContent);

    // Write the output
    await writeFile(outputFile, JSON.stringify(brunoCollection, null, 2));
    console.log('WSDL conversion successful!');
  } catch (error) {
    console.error('Error during WSDL conversion:', error.message);
  }
}

// Convert WSDL to Bruno
convertWsdlToBruno('path/to/service.wsdl', 'path/to/bruno-collection.json');

Generated Request Structure

Each SOAP operation in the imported collection will have the following structure:

Request Headers

Content-Type: text/xml; charset=utf-8
SOAPAction: "http://example.com/ServiceName/OperationName"

Request Body

<?xml version="1.0" encoding="utf-8"?>
<soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">
  <soap:Header>
    <!-- Optional header elements -->
  </soap:Header>
  <soap:Body>
    <OperationName xmlns="http://example.com/namespace">
      <!-- Parameters based on WSDL schema -->
      <Parameter1>value</Parameter1>
      <Parameter2>value</Parameter2>
    </OperationName>
  </soap:Body>
</soap:Envelope>
